48V. Traction-Grade.
Drop-In Ready.
Sodium-Ion NFPP | 48V / 300Ah / 14.4 kWh | 6,000+ Cycles | −20°C to +45°C
A complete 48V traction battery system engineered for electric mobility applications — golf carts, forklifts, airport ground support, AGVs, and campus vehicles. More capacity and 50% higher discharge current than the Series-R, with rugged IP54 protection and sodium-ion chemistry that eliminates thermal runaway risk in enclosed vehicles.
Complete Traction Battery System
Everything You Need. Nothing Extra to Source.

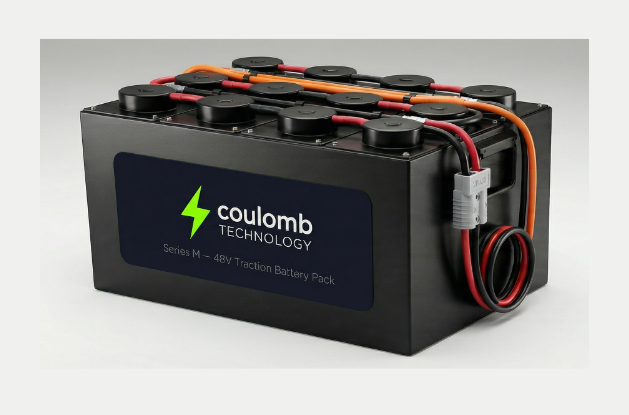

The 48V Series M ships as a complete, ready-to-install traction battery pack. Rugged IP54-rated enclosure, integrated BMS, standard 48V terminals, and 150A continuous discharge — a direct drop-in replacement for lead-acid traction batteries.
-
Sodium-Ion NFPP Prismatic Cells (16S2P)
Non-flammable, non-toxic sodium-ion chemistry — zero thermal runaway risk. Safe for enclosed vehicles including forklifts, golf carts, and airport tugs operating in warehouses, garages, and passenger areas.
-
Built-In BMS — 8 Intelligent Protections
Real-time monitoring of overcharge, overcurrent, overdischarge, overheat, temperature, short circuit, balanced power, and reverse connection — continuously protecting cells and the vehicle's power supply.
-
IP54-Rated Rugged Enclosure
Dust-protected and splash-resistant IP54 enclosure (790 × 520 × 210 mm) built to withstand the vibration, shock, and moisture exposure of daily traction use in industrial and outdoor environments.
-
Standard 48V Terminals — Direct Drop-In
Standard 48V battery terminals allow direct replacement of existing lead-acid traction batteries with no wiring modifications. Works with all standard 48V chargers and vehicle controllers.
-
150A Continuous Discharge — High-Power Traction
50% higher continuous discharge current than the Series-R, delivering the sustained high-current output required by forklifts, airport ground support equipment, and heavy-duty utility vehicles.
Why Sodium-Ion for Electric Mobility
Where Lead-Acid and
Lithium Fall Short,
Sodium-Ion Delivers.
Lead-acid traction batteries require regular watering, equalization charges, and degrade rapidly under deep cycling. Lithium-ion carries thermal runaway risk — a serious liability in enclosed vehicles and passenger transport. The 48V Series M eliminates all three problems with sodium-ion NFPP chemistry: maintenance-free, non-flammable, and built for 6,000+ deep cycles.
Sodium-ion NFPP chemistry is fundamentally non-flammable. No thermal runaway, no toxic gas emissions, no fire risk — safe for enclosed vehicles, passenger transport, and indoor warehouse operation.
- Zero thermal runaway incidents to date
- Non-hazardous shipping — air-shippable
- No toxic gas emissions in enclosed spaces
- Safe for passenger-carrying vehicles
Operates reliably from −20°C to +45°C with no thermal management system required. Performs in cold storage warehouses, outdoor environments, and high-temperature loading docks without derating or performance loss.
- −20°C to +45°C operating range
- No HVAC or active cooling required
- Minimal derating at temperature extremes
- Vibration and shock resistant (IP54)
No watering, no equalization charges, no acid spills. The Series M is a true drop-in replacement that eliminates the ongoing maintenance burden of lead-acid traction batteries — reducing downtime and total cost of ownership over a 20-year design life.
- No watering or equalization required
- Fast charging capability
- Works with standard 48V chargers
- 20-year design life at 25°C
Technical Specifications
48V Series M — Full Specification
Sodium-Ion NFPP prismatic cell configuration (16S2P) in a rugged IP54-rated traction enclosure. Certified to UL 1973, UL 9540, and UN38.3 at cell level.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Cell Chemistry | Sodium-Ion NFPP (Non-Flammable) | Cell Configuration | 16S2P (Prismatic Sodium-Ion) |
| Nominal Voltage | 48V DC | Max Charge Voltage | 60V DC |
| Nominal Capacity | 300 Ah | Cut-Off Discharge Voltage | 0V DC |
| Nominal Energy | 14.4 kWh | Max Charge / Discharge Current | 150A |
| Cycle Life (80% DOD) | 6,000+ Cycles | BMS Protections | 8 Intelligent (OVP, OCP, ODP, OTP, UTP, SCP, Balanced, Reverse) |
| Design Life (25°C) | 20 Years | Enclosure Rating | IP54 |
| Operating Temperature | −20°C to +45°C | Dimensions (L × W × H) | 790 × 520 × 210 mm |
| Storage Temperature | −20°C to +45°C / 25% RH | Weight | 125 kg (275 lbs) |
| Storage Life | 1 mo @ 45°C · 3 mo @ 35°C · 6 mo @ 25°C | Certifications | UL 1973, UL 9540, UN38.3 (cell level) |
Applications
Built for Every Electric Mobility Application
Electric Forklifts & Pallet Jacks
Drop-in replacement for lead-acid traction batteries in Class I–III electric forklifts and pallet jacks. 150A continuous discharge handles peak lift loads without voltage sag.
Golf Carts & Campus Vehicles
Longer range, zero maintenance, and all-weather reliability for golf courses, resort campuses, gated communities, and university security fleets. Safe for passenger transport.
Airport Ground Support Equipment
Baggage tugs, tow tractors, cargo transporters, and ground service equipment. Non-hazardous chemistry meets airport safety requirements for enclosed terminal and gate operations.
AGVs & Automated Warehouse Systems
Reliable, consistent voltage delivery for automated guided vehicles and robotic warehouse systems. Predictable discharge curve and fast recharge support multi-shift operations.
Ready to Replace Lead-Acid?
Get a Quote for Your Fleet
Our team will assess your fleet's duty cycle, vehicle type, and charging infrastructure to recommend the right Series M configuration — at no cost.
